Brand Name：QiCheng
Model：QCTH-2100
Place of Origin：Foshan, GuangDong of China
MOQ：1SET
Lead Time：80 Days
Loading Port：Foshan, China
Payment：T/T,L/C, 35% down payment, full payment be done before shipping
Trade Term：FOB or CIF
Installation & Commissioning：YES
Basic Information
| Application | Shower curtain laminating processing |
| Working Width | 2100mm |
| Production speed | 5-20m/min |
| Drying & heating method | Transfer fluid |
| Cooling | water |
| Air pressure | 7kg/cm2 |
| Transmission system | AC motor, frequency conversion control |
| Power | 73KW |
| Production line size | 17.5*2.7*4.2M |
| Packing style | Nude packing or do with customers requirements |
| Shipping containers | 3 containers |
| Services | 1.Chinese language or English 2.Field installation, commissioning and training 3.Field maintenance and repair service 4.Online support 5.Free spare parts |
| Main operating should including | Material feeding(how many layers decide on how many sending station)----preheating, laminating, (embossing),cooling, rewinding, slitter |

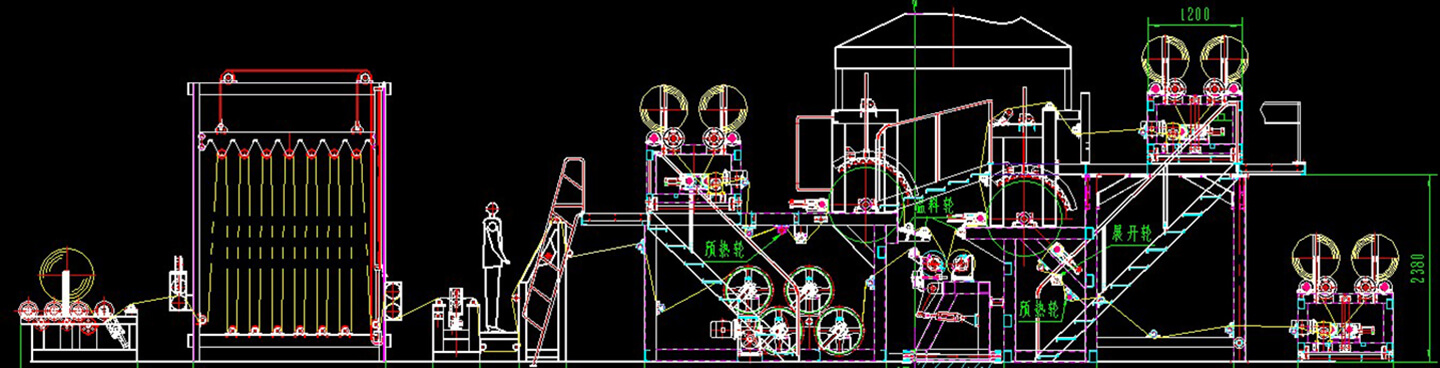

Production Line
