Brand Name:QiCheng
Place of Origin:Foshan, GuangDong of China
MOQ:1SET
Lead Time:80 Days
Loading Port:Foshan, China
Payment:T/T,L/C, 35% down payment, full payment be done before shipping
Trade Term:FOB or CIF
Installation & Commissioning:YES
Basic Information

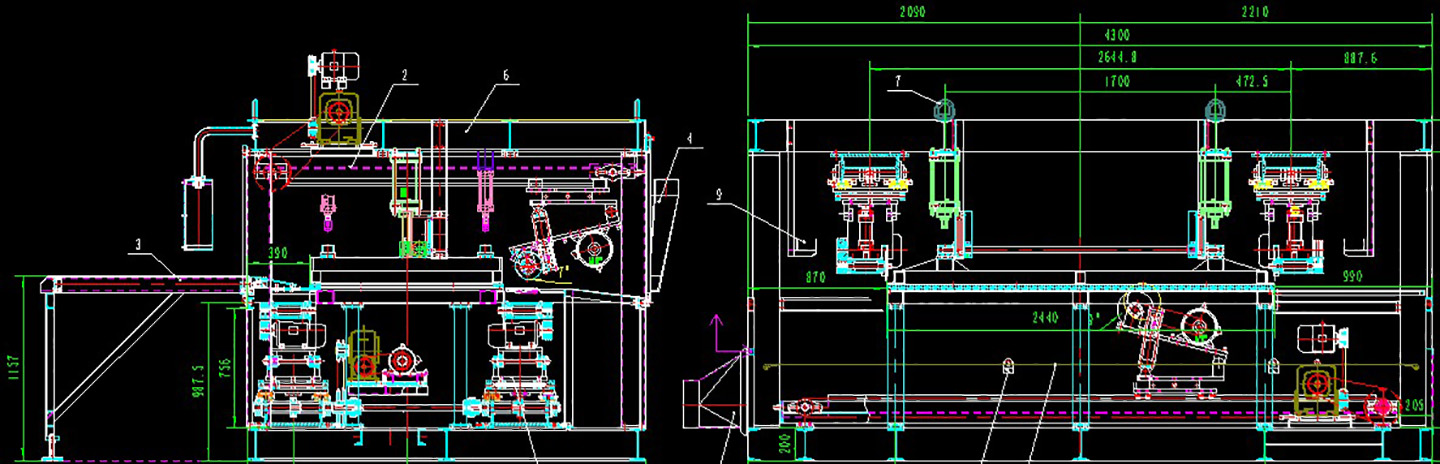

Product name | Automatic Frame sawing machine |
Working size | 1220*2440mm |
Thickness of working | 40mm |
Working speed | 1.7-8.5m/min |
Diagonal tolerance | ≤0.5mm |
Aspiration air volume | ≥20000M3/h |
Air compression | 0.5-1.0MPa |
Power | 26.2KW |
Overall dimensions | 50000mmx3600mmx2600mm |

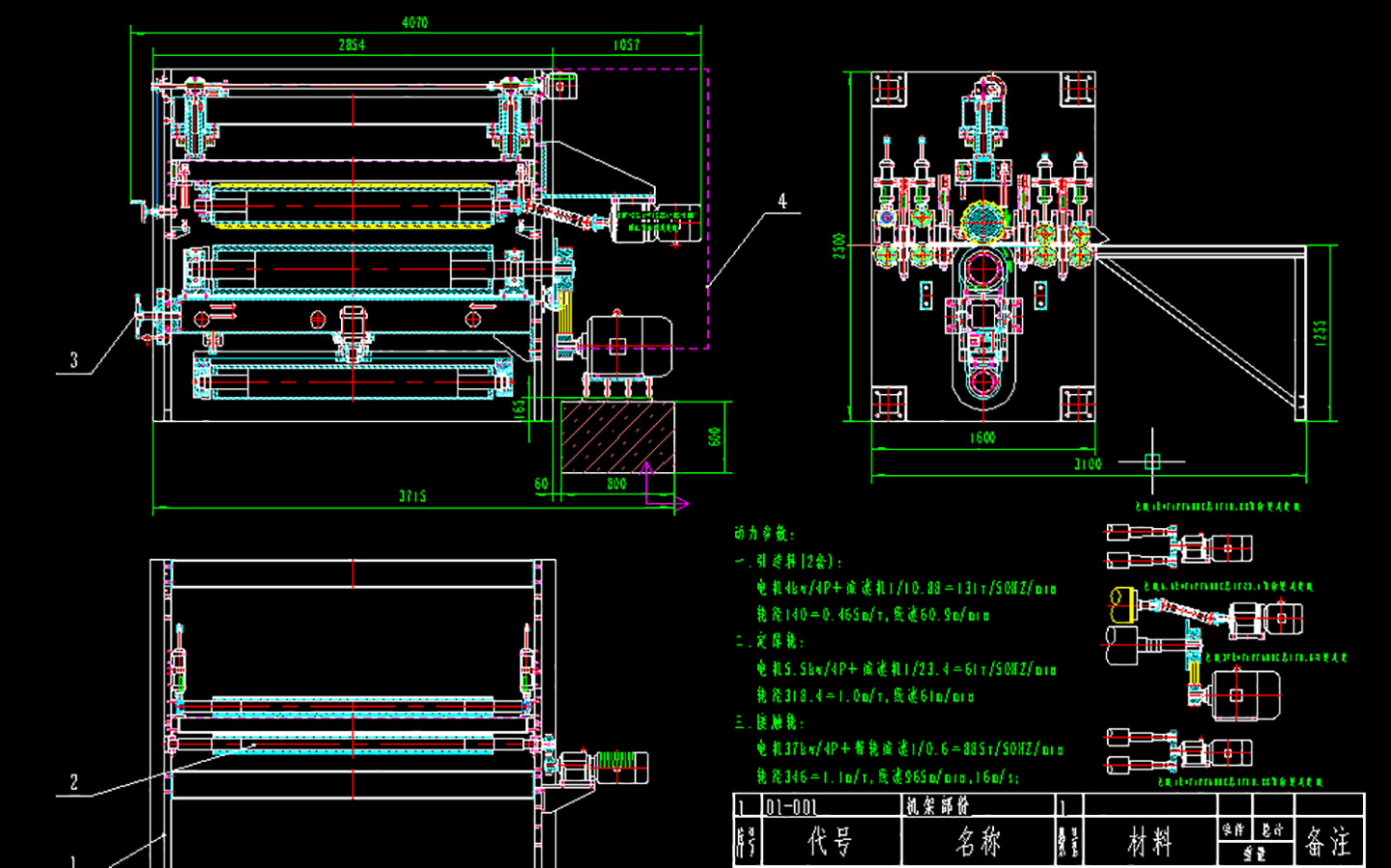

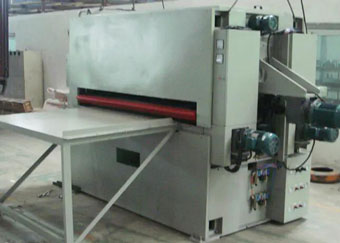

Product name | Exterior roughly sanded machine |
Working size | 1830mm |
Thickness of working | 0.4~1.2mm |
Working speed | 5~80m/min |
Sand belt for particle size | 60#/80# |
Aspiration air volume | 0.6m3/min |
Air compression | 0.6Mpa (~1.2 m3/min) |
Power | 37KW |
Overall dimensions | 3500mmx1500mmx2700mm |
Overall dimensions | 50000mmx3600mmx2600mm |

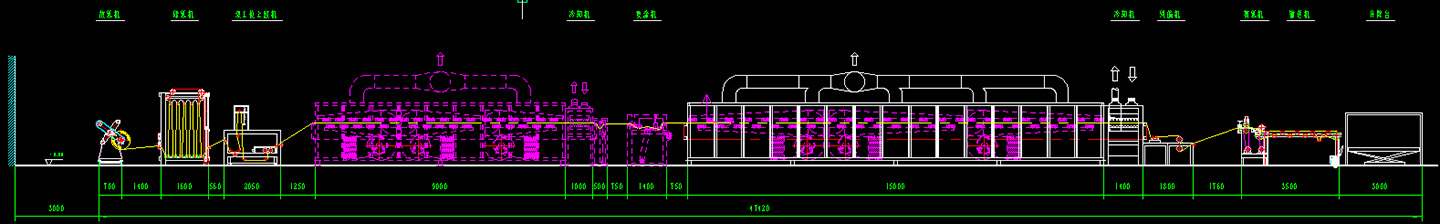

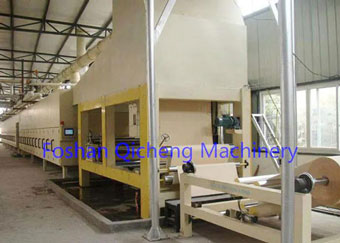

Product name | Decorative skin gumming and drying processing line |
Working Width | 1400mm |
Working speed | 3-40m/min |
Working temperature | ≤160℃ |
Mode of heating | Heating transfer fluid |
Power | 55KW |
Overall dimensions | 50000mmx3600mmx2600mm |
Central unwinding machine | ≤1000 |
Material reservation | 20M |
Glue dipping machine | Double station |
Air cooling machine | 1set |
Coating machine | 1set |
Auto-rectification device | 1set |
Cutting machine | With traction and counter |
Conveyor | Electromagnetic speed regulation |
Lift Table | 1set |
Mechanical Equipment
Exterior Roughly Sanded Machine Automatic Frame Sawing Machine Decorative Skin Gumming And Drying P...
